SPECIAL RULES

Product	Super 52
Hardness	Body - 40 - 44 HRC Edge - 44 HRC
Thickness	0.7 (2pt) - 1.05 mm (3pt)
Bevel execution	CB
Bevel angles	42°, 52°
Bevel finish	shaved (S)

Some products are stock items but a very wide range of heights and intermittences can be made to order.

Dimensions	Intermittences	Tooth (mm)	Gap (mm)	on stock
23.8 mm x 0.71 mm	1 x 1	1	1	x
23.8 mm x 0.71 mm	2 x 1	2	1
23.8 mm x 0.71 mm	3 x 1	3	1
23.8 mm x 0.71 mm	4 x 1	4	1
23.8 mm x 0.71 mm	5 x 1	5	1
23.8 mm x 0.71 mm	2 x 2	2	2	x
23.8 mm x 0.71 mm	3 x 3	3	3	x
23.8 mm x 0.71 mm	4 x 4	4	4
23.8 mm x 0.71 mm	7 x 7	7	7

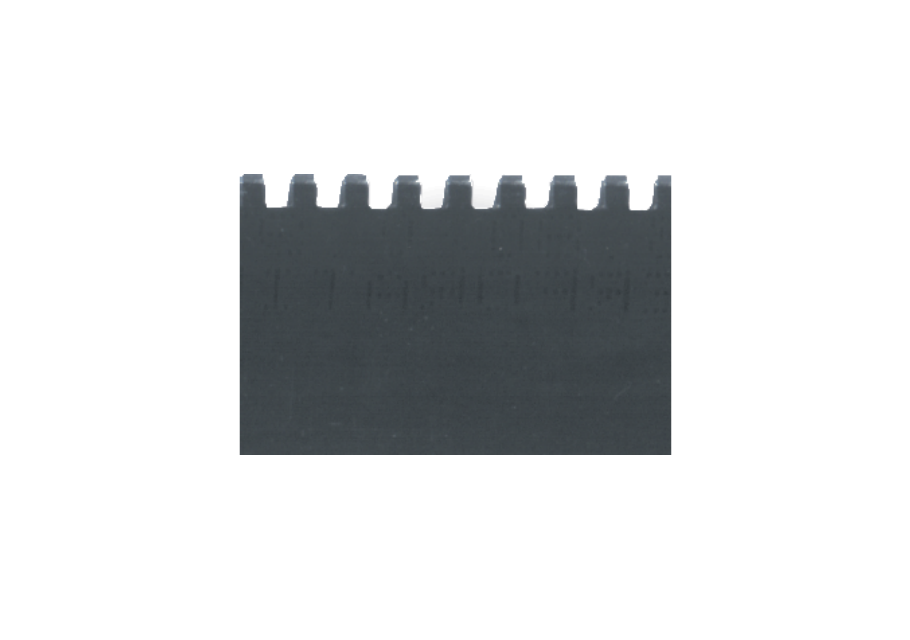

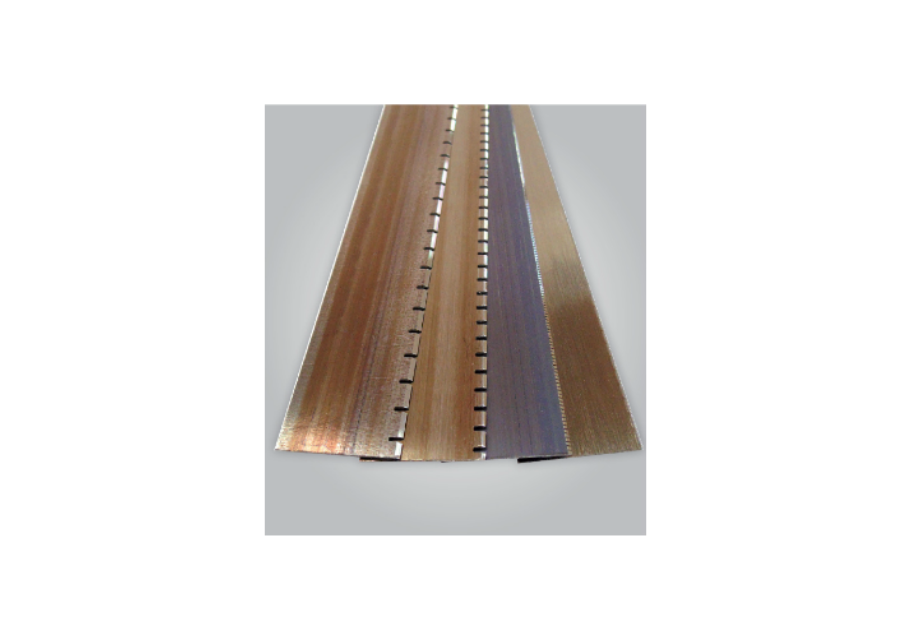

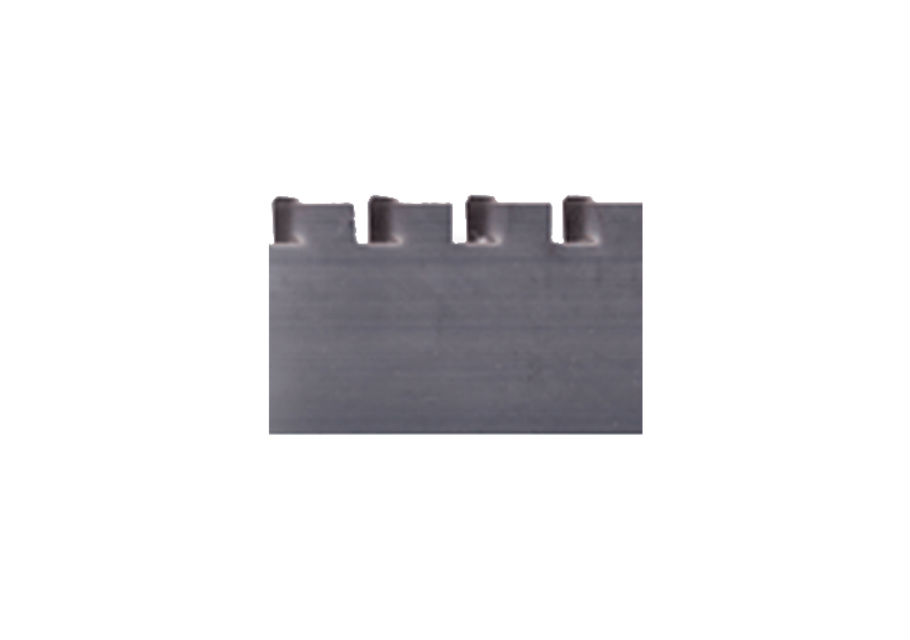

STANDARD PERFORATING BLADES

We have a wide range of blades in stock. Available in 2pt, 3pt, and
4pt in a wide range of tooth and gap combinations. Other sizes can
be made to order. Both centre and side bevel are available and can
be supplied in coils or cut lengths.

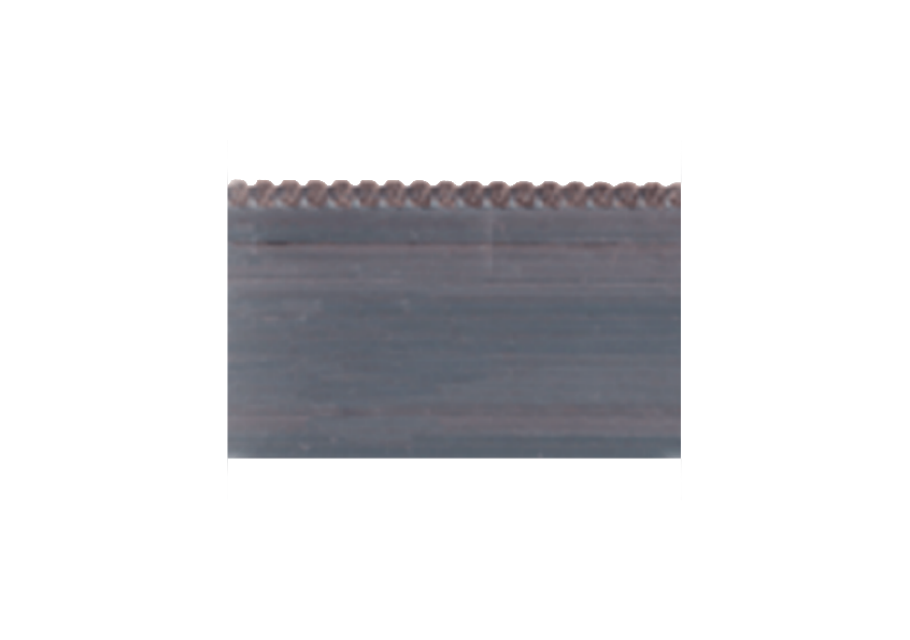

STANDARD MICRO PERFORATING BLADES

50 tpi – for single and multi part forms. Available with minimum
tooth depth of 0,35mm and a maximum of 0,70mm. Standard tie
size is 0,20mm.


30 tpi - for single and multi part forms. Available with minimum
tooth depth of 0,35mm and a maximum of 0,70mm. Standard tie
size is 0,30mm.


Special sizes– can be made to order.
